41 62 007 Removing And Installing Rear Lid Lower Section

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Necessary preliminary tasks

Disconnect all plug and socket cable connections on rear lid bottom section.

Operation is described on the left side. Right side identical.

Pull wiring harness (1) out of tailgate lower section.

Release screws (2) and remove tailgate lower section with second person.

Tightening torque 41 62 4AZ .

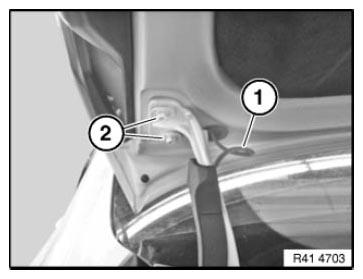

Fig 1: Identifying Tailgate Lower Section Wiring Harness And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install tailgate at screw locations on hinge. This dispenses with the need for adjustment after installation.

If necessary, adjust REAR TRUNK LID .

If reversing camera optional equipment installed

Calibrate REVERSING CAMERA .
