41 5.... Adjust Door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage adjoining body components.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

NOTE: Observe 41 00... BODY GAP DIMENSIONS .
The door must be provided with all add-on parts for correct adjustment.
Side window lowered.
Adjust screwed body components from rear to front.

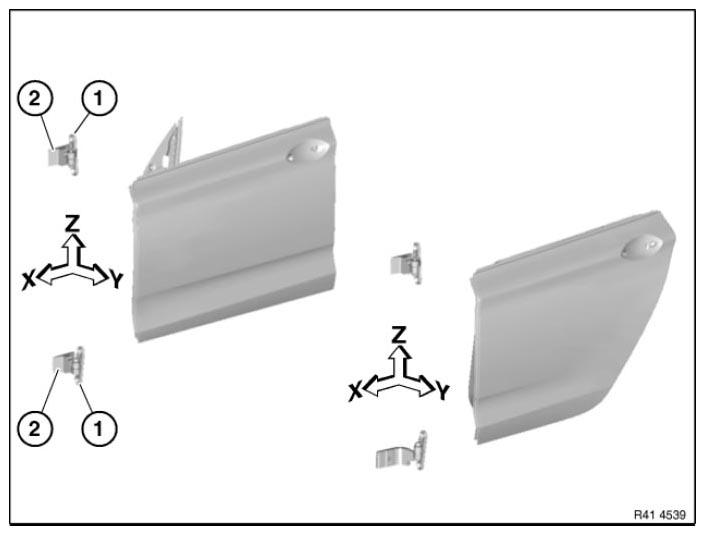

Fig 1: Adjusting Door

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken lock striker, remove if necessary.

Height adjustment (Z):

Slacken screws for hinges (1) on door until door can still just be moved. Adjust height of door.

If the range of adjustment is not sufficient, also slacken screws for hinges on body (2) and adjust height of door.

NOTE: Carry out adjustment in longitudinal direction (X) and in transition to side panel (Y) for hinges only, as otherwise height adjustment is lost.

Adjusting in longitudinal direction (X):

Slacken screw (2) on upper hinge and adjust door in longitudinal direction. Then adjust door at lower hinge in longitudinal direction.

Adjusting in transition to side panel (Y):

Slacken screws (1) on upper hinge and adjust door in transition to side panel. Then adjust door at lower hinge in transition to side panel.

Tightening torques 41 51 and 41 52 . See 41 52 REAR DOORS or 41 51 FRONT DOORS .

Check that adjoining body components are flush in terms of height and correct if necessary.

NOTE: Height adjustment of door must not be influenced by lock striker.
When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratch marks.

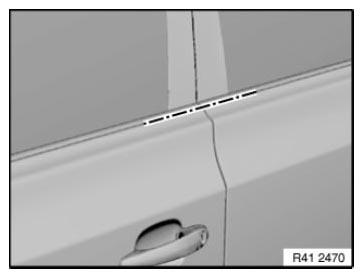

Fig 2: Identifying Door Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1) until lock striker can still just be moved.

Move lock striker sideways in order to adjust transition between door and rear side panel.

Tightening torque 51 21 3AZ .

NOTE: When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratch marks.

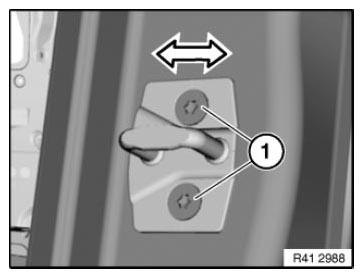

Fig 3: Adjusting Lock Striker

Courtesy of BMW OF NORTH AMERICA, INC.

After setting

If the hinge is slackened on the body side, the area of the hinge must be sealed in a u-shape with sealant (1).

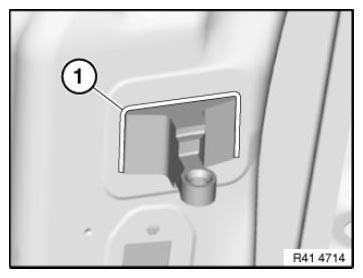

Fig 4: Identifying Hinge Sealant Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

After setting

Tighten all screws to specified torque.
Adjust window pane See 51 34 154 ADJUSTING REAR LEFT OR RIGHT FRONT WINDOW or 51 32 154 ADJUSTING LEFT OR RIGHT FRONT SIDE WINDOW if necessary.
Touch up unpainted surfaces in the appropriate color.
