64 12 673 Replacing left or right electric auxiliary heater - rear cabin

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove driver's seat or passenger seat See 52 14 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or 52 14 002 REMOVING AND INSTALLING FRONT SEAT, FRONT PASSENGER SIDE .

Release screws (1).

Remove cover (2).

Fold carpet (3) to one side.

Fig 1: Identifying Accompanying Information Label And Filling Capacity Information Label

Courtesy of BMW OF NORTH AMERICA, INC.

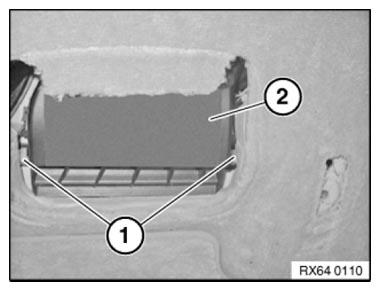

Release plastic nuts (1).

Installation:

Ensure that air duct (2) is correctly seated.

Fig 2: Identifying Air Duct And Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

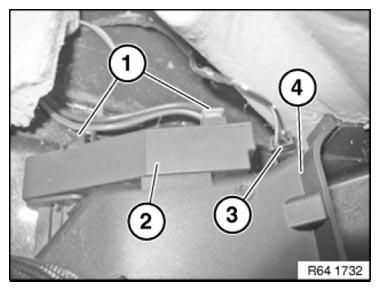

Unlock and disconnect plug connections (1) on electric auxiliary heater (2).

Unlock and disconnect plug connection (3) on temperature sensor.

Completely feed out air duct (4).

Fig 3: Identifying Plug Connections, Electric Auxiliary Heater And Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove TEMPERATURE SENSOR FOR ELECTRIC AUXILIARY HEATER .
