72 11 101 Removing and installing/replacing rear centre seat belt

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove left REAR SEAT .
Remove LEFT BACKREST COVER .

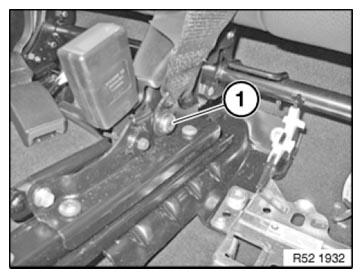

Release screw (1).

Tightening torque, see 72 11 21AZ.

Installation:

End fitting is coded against incorrect assembly.

Fig 1: Identifying End Fitting Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

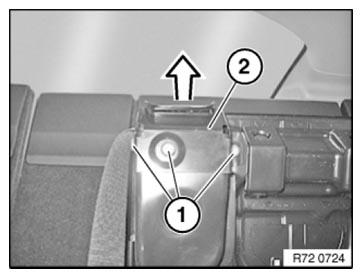

Release screws (1).

Remove cover (2).

Fig 2: Removing Rear Centre Seat Belt Cover

Courtesy of BMW OF NORTH AMERICA, INC.

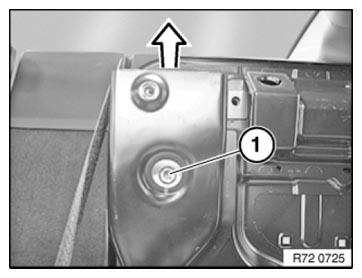

Release screw (1).

Tightening torque, see 72 11 20AZ.

Remove automatic reel with anchor fitting.

Installation:

Automatic reel is coded against incorrect installation.

Fig 3: Removing Automatic Reel From Anchor Fitting

Courtesy of BMW OF NORTH AMERICA, INC.
