72 12 006 Removing and installing/replacing airbag module for passenger's knee protection
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorised experts.
Improper, unauthorised operations may result in serious dangers.
Unauthorised persons are strictly prohibited from performing any operations on this system.
Improper, unauthorised operations may result in serious dangers.
Unauthorised persons are strictly prohibited from performing any operations on this system.
Necessary preliminary work
- Remove TRIM FOR INSTRUMENT PANEL , bottom right.

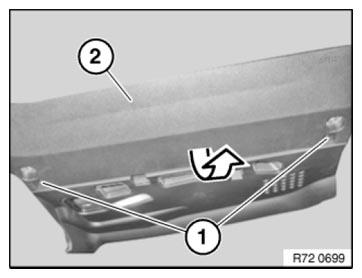

Release screws (1).
Tightening torque 72 12 03AZ.
Feed airbag module (2) in direction of arrow out of instrument panel trim and remove.
Installation:

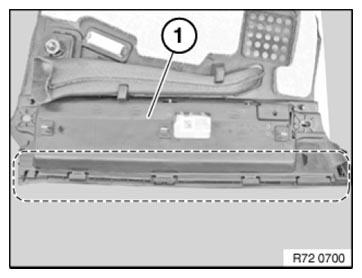

Make sure airbag module (1) is correctly seated in instrument panel trim.
