66 54 511 Replacing night vision camera

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

IMPORTANT: New component contains a CD with deblocking code.
Enable code CD is requested during coding/programming by the SSS.
Coding/programming without the enable code CD is not possible!

Necessary preliminary work

Removing SPRAY NOZZLE FOR NIGHT VISION CAMERA .

Release screws (2) on holder for camera (1).

Unclip catches (3) on camera holder (1).

Remove camera including holder (1).

Fig 1: Identifying Latch Mechanisms On Camera Holder

G06886562

Courtesy of BMW OF NORTH AMERICA, INC.

Release lock (1) at adjusting screw (2) and press upwards in direction of arrow.

At same time twist out adjusting screw (2) and pull out complete pin with spring.

Fig 2: Identifying Plug Connection With Tabs

G06886527

Courtesy of BMW OF NORTH AMERICA, INC.

Holder (2) and fixture (3) must also be replaced when replacing camera (1).

Fig 3: Identifying Holder, Fixture And Camera

G06886570

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly of individual parts:

Place mount (2) on camera.

Tighten screws (1).

Tightening torque 66 54 1AZ.

Fig 4: Identifying Mount On Camera With Screws

G06886571

Courtesy of BMW OF NORTH AMERICA, INC.

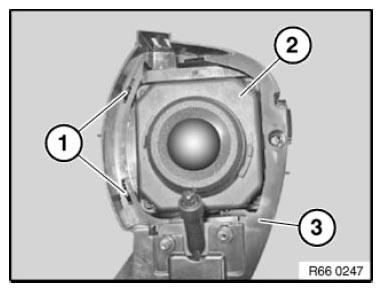

Insert camera (2) with mount in holder.

Retaining lugs (1) on the mount must engage correctly in the guides on the holder (3).

Fig 5: Identifying Camera, Retaining Lugs And Holder

G08485393

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Adjust NIGHT VISION CAMERA .

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING. .
