37 13 125 Removing and refitting/replacing pressure line on swivel motor VA2

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 1 270

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
DANGER OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Do not draw off hydraulic fluid (risk of contamination).
Close off line connections with seal plug. 32 1 270

Recycling

Catch and dispose of hydraulic fluid in a suitable expansion tank.

Necessary preliminary work

Remove front right wheel arch cover . See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) or 51 71 039 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (REAR SECTION) .
LOWER FRONT AXLE .

IMPORTANT: Pressure line and connection on valve block must be fitted with suitable seal plugs 32 1 270 immediately after removal!

Unfasten screw connection (1).

Tightening torque 37 13 5AZ .

Fig 1: Identifying Valve Block Pressure Line Screws Connections

G06890231

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plastic holder (1) and disengage line.

Fig 2: Identifying Pressure Line Holder

G06890242

Courtesy of BMW OF NORTH AMERICA, INC.

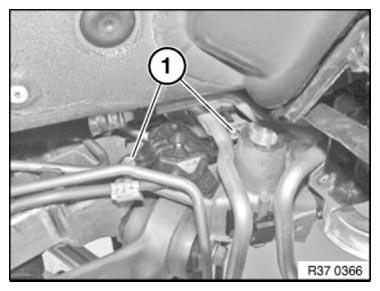

Release screws (1) from line clip on front axle support and remove clip.

Tightening torque 37 13 7AZ .

Fig 3: Identifying Front Axle Support Pressure Line Clip Mounting Screws

G06890260

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Remove pipe.

Tightening torque 37 13 4AZ .

Fig 4: Identifying Pressure Lines Mounting Screws

G06890180

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Note installation position of rubber spacer (1).
Make sure pressure lines are laid without tension.

Fig 5: Identifying Rubber Damper

G06889720

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When assembling, make sure that in succession only the seal plugs of the line to be fitted are removed.

When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.

Do not replace sealing rings on hydraulic lines.

Replace affected line if sealing ring is damaged.

After installation

Fill and bleed HYDRAULIC SYSTEM .
Check line connections for tightness
Carry out INITIAL DYNAMIC DRIVE OPERATION .
