52 26 412 Replacing backrest cover for right rear seat

Special tools required:

• 52 0 050

Necessary preliminary tasks

• Remove right REAR SEAT .
• Remove GUIDE SLEEVES .

With optional seat heating only:

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Fold down backrest.

Lever out welt in marked area of rear panel.

Fig 2: Identifying Rear Panel Welt Area

Courtesy of BMW OF NORTH AMERICA, INC.

Remove backrest cover with padding.

Fig 3: Removing Backrest Cover With Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

• Release all retainers in marked area
• Remove cover from padding
• Remove remaining retainers from cover and padding

Replacement only:

• Pull all trim wires out of cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into cover pockets
  Fig 4: Identifying Retainers Area On Cover And Upholstery

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

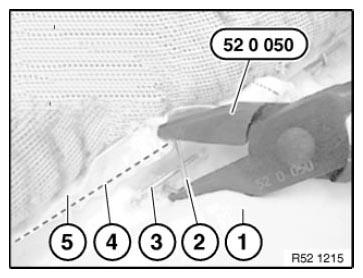

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Padding
2. Retainer
3. Trim wire in padding
4. Trim wire in seat cover
5. Backrest cover
   Fig 5: Inserting Clamp Using Special Tool (52 0 050)

   Courtesy of BMW OF NORTH AMERICA, INC.
