52 26 200 Removing and installing/replacing rear panel on right rear seat back

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove BACKREST COVER on right.

Remove folding covers on left and right:

Detach cover (1).

Fig 1: Removing Folding Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 52 26 08AZ .

Remove folding cover.

Fig 2: Removing Backrest Frame Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off rear panel (1).

Fig 3: Identifying Rear Seat Back Panel

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, use flat scraper (1) to separate rear panel (2) from rear seat backrest.

Installation:

Comply with instructions issued by manufacturer of universal spray adhesive.

Apply universal spray adhesive to rear panel and rear seat back.

Fit and align rear panel within the air drying time (see manufacturer's instructions).

Observe and adhere to curing time to prevent rear panels from slipping.

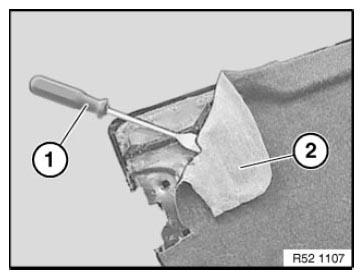

Fig 4: Separating Rear Panel From Rear Seat Backrest Using Flat Scraper

Courtesy of BMW OF NORTH AMERICA, INC.
