52 14 017 Removing and installing/replacing seat frame for driver's seat

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove DRIVER'S SEAT.
Remove seat fabric . See 52 16 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (SPORT) , 52 17 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (COMFORT) or 52 17 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (COMFORT) .
Remove backrest frame . See 52 17 032 REMOVING AND INSTALLING/REPLACING BACKREST FRAME FOR DRIVER'S SEAT or 52 14 031 REMOVING AND INSTALLING/REPLACING BACKREST FRAME FOR LEFT OR RIGHT DRIVER'S SEAT on front seat.

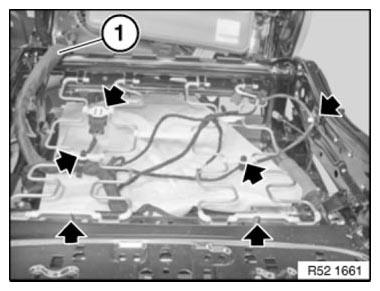

Release all clips.

Installation:

If necessary, replace faulty clips.

Feed wiring harness (1) out of seat frame.

Fig 1: Locating Wiring Harness Mounting Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Open rivets (1) on left and right.

Remove securing strips (2) on left and right.

Release screws (3).

Tightening torque 52 10 6AZ .

Remove seat frame from seat rail.

Fig 2: Identifying Seat Frame Rivets, Strips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
