52 17 402 Replacing seat cover for driver's seat (comfort)

Special tools required:

• 00 9 317
• 52 0 050

Necessary preliminary work

• Remove FRONT SEAT .
• Remove BOTH REAR PANELS  on front seat backrest.
• Remove INNER COVER  on front seat.
• Remove THIGH SUPPORT .
• Remove SWITCH COMBINATION for seat adjustment.

Unclip cover (1) on front seat.

Fig 1: Identifying Front Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Remove metal clamps (1) left and right on the cover.

Bend up metal clamps and insert back into the cover.

Clip metal clamps (1) with cover into the centre slot on the seat mechanism.

Guide lug must not be broken.

Renew faulty cover if necessary.

Fig 2: Removing Metal Clamps Left And Right On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim (1) for thigh support carrier with special tool 00 9 317 .

Fig 3: Uncliping Thigh Support Carrier Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps in area (1).

Detach seat cover in area (2) on left and right.

Remove cable (3).

Fig 4: Identifying Cable, Seat Cover And Clamp Area

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook seat cover in marked area (1).

With seat heating only as optional equipment:

Disconnect plug connection (1).

Remove seat cover complete with upholstery.

Fig 5: Identifying Seat Cover And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

With air conditioning only as optional equipment:

Unfasten plug connection (1) and disconnect.

Fig 6: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Detach all clamps in side area from longitudinal wires (1).

Pull trim wires (1) forward out of seat cover.

Carefully fold back seat cover and release clamps from cross-wires (2).

Remove seat cover from upholstery.

Fig 7: Identifying Trim Wires And Cross-Wires

Courtesy of BMW OF NORTH AMERICA, INC.

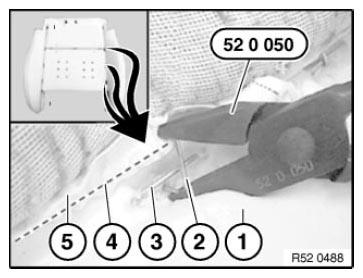

Installation note:

52 0 050 Bend new retainers closed with pliers.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in cover
5. Seat cover
   Fig 8: Bending Clamps Using Pliers

   Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

If necessary, cut mounting for trim threads.

Slide trim threads (1) into new seat cover.

Fig 9: Identifying Seat Cover Trim Threads

Courtesy of BMW OF NORTH AMERICA, INC.
