52 14 010 Removing and installing/replacing both seat rails on left or right front seat

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove driver's or passenger seat . See 52 14 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or 52 14 002 REMOVING AND INSTALLING FRONT SEAT, FRONT PASSENGER SIDE .
Remove lower strap . See 72 11 071 REMOVING AND INSTALLING/REPLACING FRONT LOWER STRAP FITTING (BELT TENSIONER), FRONT PASSENGER SEAT or 72 11 070 REMOVING AND INSTALLING/REPLACING FRONT LOWER BELT FITTING (BELT TENSIONER), DRIVER'S SEAT (belt tensioner).
Remove TRIMS FOR TOP RAIL .

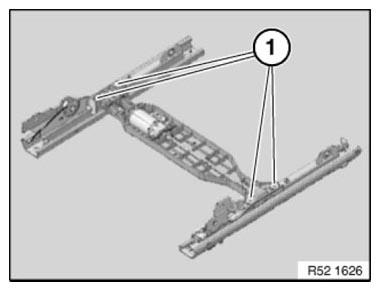

Unlock and disconnect plug connection (1) on drive for longitudinal seat adjustment.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

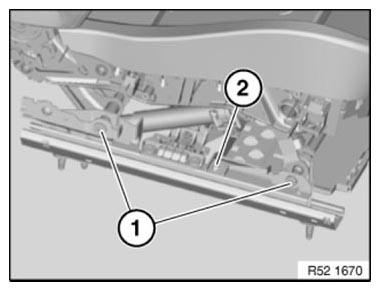

Release left and right screws (1).

Tightening torque 52 10 06AZ .

Release nuts (2) on left and right on carrier plate.

Remove seat rails with motor carrier plate.

Fig 2: Identifying Carrier Plate Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only

Release screws (1).

Fig 3: Identifying Carrier Plate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

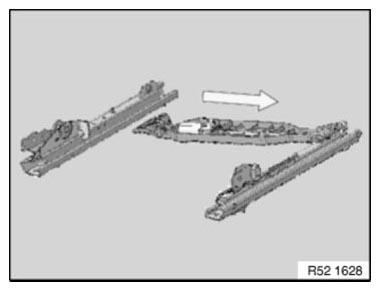

Detach left or right seat rail from flex-shaft.

Detach motor retaining plate with drive and flex-shaft from opposite seat rail.

Fig 4: Disconnecting Left Or Right Seat Rail From Flex-Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

PTFE hoses are shrink-fitted onto end pieces.

Check that hoses are free from damage.

Fig 5: Identifying PTFE Hoses

Courtesy of BMW OF NORTH AMERICA, INC.
