22 11 001 Replacing right engine mount (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Secure engine in INSTALLATION POSITION .
Remove rear UNDERBODY PROTECTION .
Release ENGINE SUPPORT ARM (left-hand drive models only).
Lower FRONT AXLE SUPPORT (right-hand drive models only).

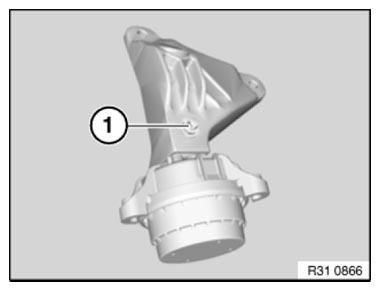

Release bolt (1) and remove engine mount.

IMPORTANT: Installation note:
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).
Tightening torque 22 11 2AZ .

Fig 1: Identifying Engine Mount Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

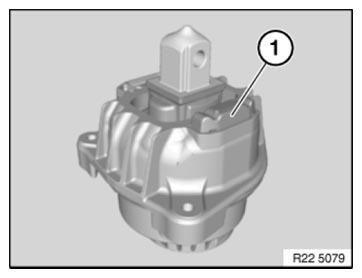

Rubber part (1) of engine mount must point to center of vehicle.

Fig 2: Identifying Engine Mount Rubber Part

Courtesy of BMW OF NORTH AMERICA, INC.
