22 11 100 Replacing right engine support arm (N63)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Secure engine in INSTALLATION POSITION .
- Remove rear UNDERBODY PROTECTION .
- Lower FRONT AXLE SUPPORT (right-hand drive models only).

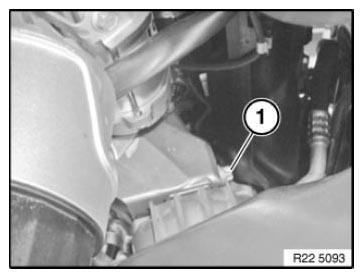

Release screw (1).
IMPORTANT:
Installation note:
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).
Tightening torque 22 11 2AZ .
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).
Tightening torque 22 11 2AZ .

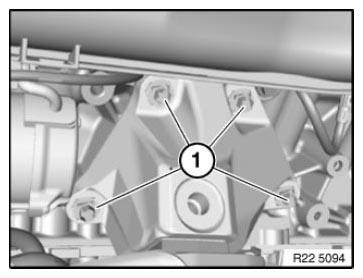

Release screws (1).
Remove engine support arm.
Tightening torque 22 11 3AZ .
