51 24 100 Removing and installing/replacing rear lid lock for (upper) tailgate

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM FOR TAIL PANEL AT TOP .

Unclip Bowden cable sleeve (1).

Pull out Bowden cable nipple (3).

Disconnect plug connections (2).

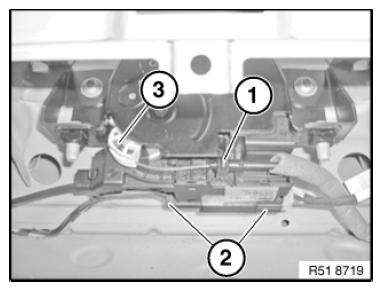

Fig 1: Identifying Plug Connections, Bowden Cable Sleeve And Nipple

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 24 1AZ .

US version only

Unclip Bowden cable (2) from emergency release.

Installation:

Place expanded rubber tab at end of Bowden cable directly underneath tail end trim screw cover.

Feed out rear lid lock (3).

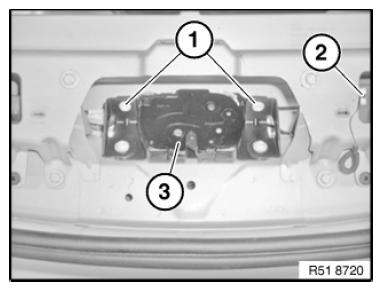

Fig 2: Identifying Lid Lock, Bowden Cable And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

US version only

Modify Bowden cable for emergency release.

Installation:

Perform function check with (upper) tailgate open.
