51 13 116 Removing and installing/replacing cowl panel cover

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove BOTH WINDSCREEN WIPER ARMS .

Lever out expander rivets (1) on cover (2) on left/right.

Remove cover (2) on left / right.

Installation:

If necessary, replace damaged expander rivets.

Make sure holders (3) are correctly seated.

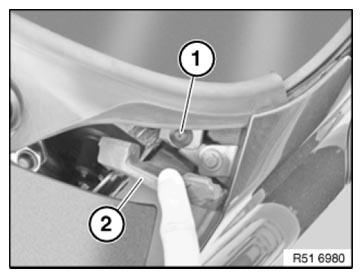

Fig 1: Identifying Expander Rivets On Cover And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expanding rivets (1) under cover (2) on left and right.

Fig 2: Levering Out Expanding Rivets Under Cover

Courtesy of BMW OF NORTH AMERICA, INC.

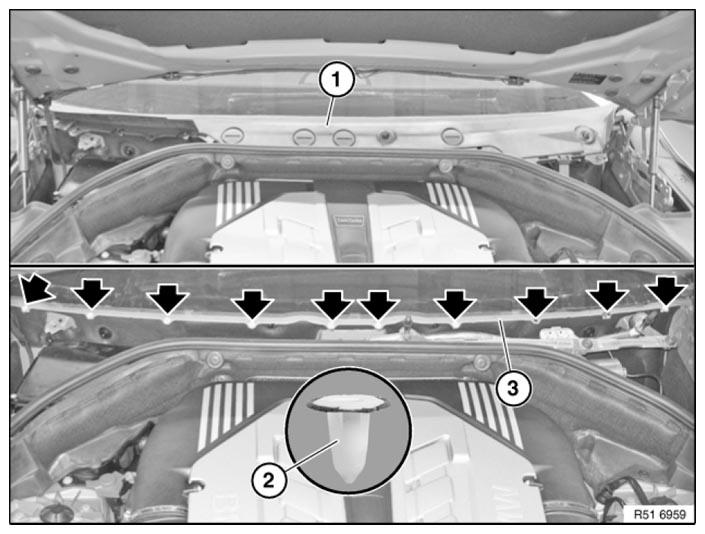

Fig 3: Locating Cowl Panel Body Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unclip cowl panel cover(1) at marked locations.

Remove cowl panel cover (1).

Installation:

Retaining clips (2) for rivets must be located at marked locations in cowl panel body.

Replace damaged retaining clips (2).
