51 13 001 Removing and installing/replacing front radiator grille, middle left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove ENGINE COMPARTMENT LID SEAL in working area.

Version with night vision

Release camera fixing screw (1) and remove.

Fig 1: Identifying Screw, Dual-Look, Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Press middle front radiator grille (1) upwards and pull in direction of arrow towards front.

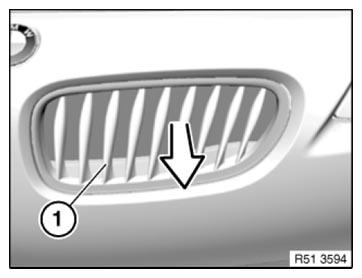

Fig 2: Pulling Middle Front Radiator Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Version with night vision

Release plug connection (2) and high-pressure nozzle line (3) on night vision camera (1) and disconnect.

Fig 3: Identifying Plug Connection And High-Pressure Nozzle Line On Night Vision Camera

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All catches and guides on middle front radiator grille must not be damaged.

Press on chrome ring to push front radiator grille (2) into bumper trim.

Fixtures (1) must engage correctly.

Fig 4: Pushing Front Radiator Grille Into Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove NIGHT VISION CAMERA .
