51 43 251 Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove COVER ON C-PILLAR AT BOTTOM .
Remove REAR SEAT BELT (end fitting).

Release expanding rivets (2) from trim panel (1).

Unhook trim panel (1) downward and set aside.

Fig 1: Identifying Expanding Rivets And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Hooks (2) on trim panel (1) must not be damaged.

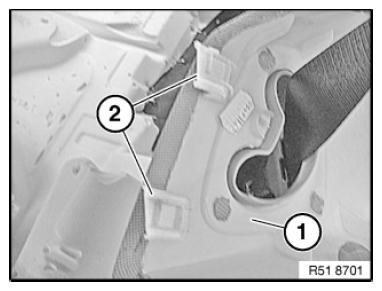

Fig 2: Identifying Hooks And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
