51 43 230 Removing and installing / replacing trim on C-pillar at bottom left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR ENTRANCE COVER STRIP .
Remove SCREEN .

Depending on equipment specification:

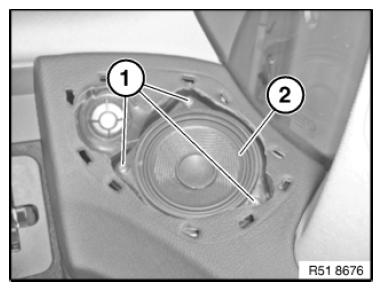

Pry off speaker cover.

Release screws (1) on speaker (2).

Disconnect plug connections underneath and remove speaker (2).

Installation:

Make sure tweeter wiring is correctly routed.

Fig 1: Identifying Speaker With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

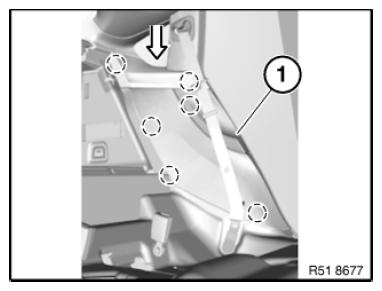

Unclip bottom trim on C-pillar (1) at the marked sites.

Pay attention to retaining tab (arrow) when removing cover.

Fig 2: Removing Bottom Trim On C-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

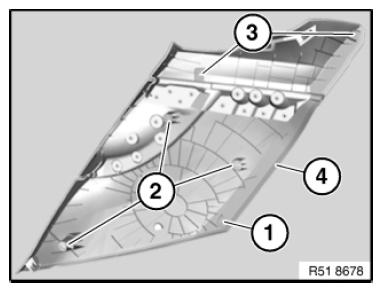

Modify clips (1), (2) and (3) on cover (4).

1 = Natural

2 = White

3 = Blue

Fig 3: Identifying Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
