51 34 191 Replacing left or right fixed door window in rear window frame

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 3 300

Necessary preliminary tasks

Remove REAR DOOR TRIM PANEL .
Remove REAR WINDOW CAVITY COVER STRIP .
Partially release inner window cavity cover strip in region of fixed window

Release nut (1) SW10 with special tool 51 3 300 .

Tightening torque: 51 35 3AZ

Fig 1: Loosening Collar Nut Using Special Tool (51 3 300)

Courtesy of BMW OF NORTH AMERICA, INC.

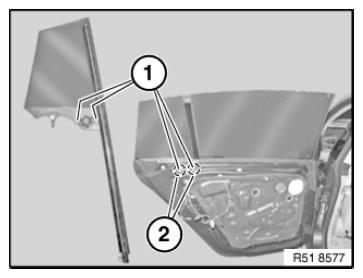

Remove paintwork protection film (2). Release screws (1).

Tightening torque: 51 35 2AZ

Fig 2: Identifying Paintwork Protection Film And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

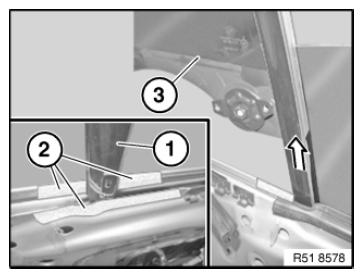

In area of window guide (1), mask window cavity with fabric adhesive tape (2) (risk of damage).

Completely remove side window (3) with window guide in direction of arrow.

Fig 3: Removing Side Window

Courtesy of BMW OF NORTH AMERICA, INC.

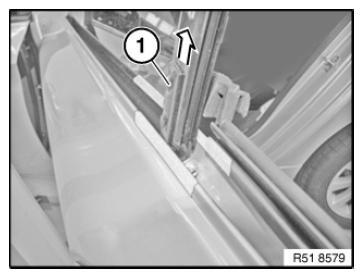

Pull out window guide (1) with side window.

Fig 4: Pulling Out Window Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust REAR SIDE WINDOW .
