51 22 300 Removing and installing/replacing window cavity cover strip on rear door on left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 324

IMPORTANT: Observe PROCEDURE for using special tool 00 9 324 .

IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

Tape off area below window cavity cover strip with fabric adhesive tape (2).

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).

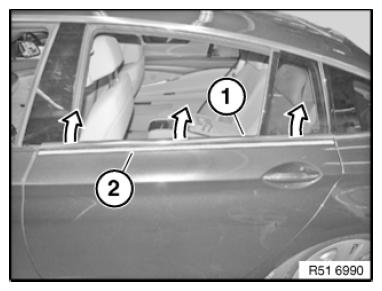

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) must be correctly fitted in cover strip (2).

Fig 2: Identifying Seal And Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
