51 76 055 Removing and installing/replacing lower tailgate section
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove WATER CHANNEL COVER from side.

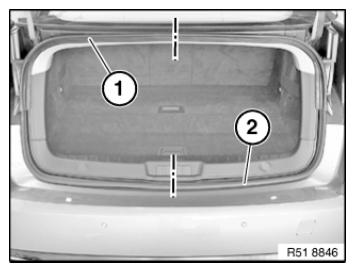

Detaching and removing top sealing (1).
Detaching and removing bottom seal welt (2).
Installation note:
Start installation from the center.
Fit bottom seal welt (2) in front of top sealing (1).
Install profile seal (water gutter) of top sealing (1) in correct position on left and right in tailgate.
