51 12 828 Removing and installing/replacing guide for rear left or right bumper
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove REAR BUMPER TRIM
NOTE:
The operation is described on the left side; proceed in the same way for the right side.

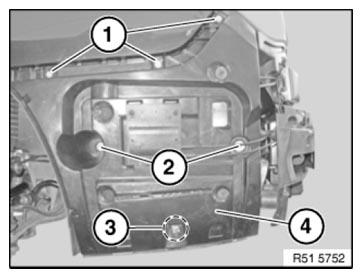

Unfasten screws (1 and 3).
Replace sheet nuts behind if necessary.
Unscrew nuts (2).
Remove guide (4).
Tightening torque 51 12 3AZ .
If necessary, remove TELEPHONE AERIAL .
