65 20 250 Removing and installing/replacing rear telephone aerial

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

NOTE: Picture for example purposes.

Unfasten plug connection (1) and disconnect.

Slacken nut (2).

Unlock telephone aerial (3) and remove.

Installation:

Make sure telephone aerial (3) is correctly seated.

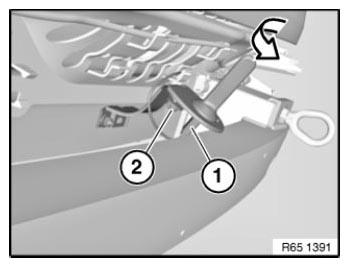

Fig 1: Identifying Plug Connection And Nut
G08485274Courtesy of BMW OF NORTH AMERICA, INC.
