51 12 825 Removing and installing/replacing guide for rear center bumper

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR BUMPER TRIM .
If necessary, remove SENSOR FOR LANE CHANGE WARNING .

NOTE: Operation is described on the left side.
The operation on the right side is the same as for the left side.

Release screw (1).

Slacken nut (2).

Tightening torque 51 12 2AZ .

Installation note:

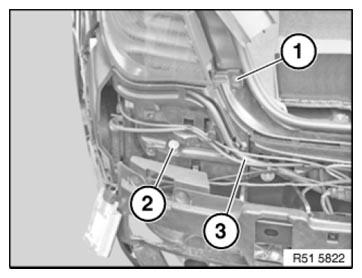

Fig 1: Identifying Rear Center Bumper Screw And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Note line routing.

Unscrew nuts (1).

Tightening torque 51 12 2AZ .

If necessary, remove plug connection on bumper aerial for comfort access system.

Feed out guide (2) and remove.

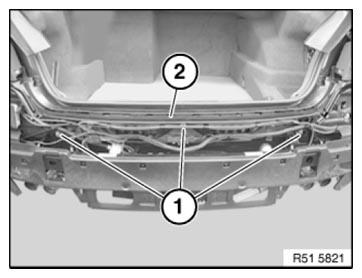

Fig 2: Identifying Guide And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remove bumper aerial for comfort access system. See 61 35 975 REMOVING AND INSTALLING/REPLACING BUMPER AERIAL FOR COMFORT ACCESS SYSTEM .
