63 31 020 Removing and installing/renewing footwell light

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTING) .

Footwell, left/right:

Lever footwell light (1) in direction of arrow out of trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

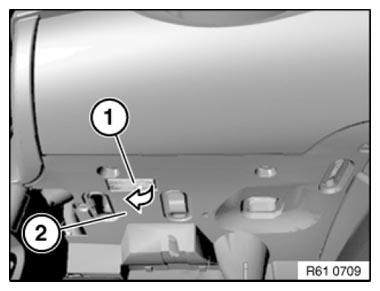

Fig 1: Removing Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.

Door, left/right:

Lever footwell light (1) in direction of arrow out of door trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Replacement:

If necessary, remove bulb, note BULB TYPE .
The footwell light in LED technology must be completely replaced!

Fig 2: Removing Footwell Light From Door Trim
Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (1) in direction of arrow and pull out of footwell light (2).

Installation note:

Make sure bulb holder (1) is correctly seated and latched on footwell light (2).

Fig 3: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bulb (1) in direction of arrow out of bulb holder (2).

Fig 4: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
