51 45 031 Replacing instrument panel trim

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks

Remove INSTRUMENT PANEL TRIM .
Change over airbag module on passenger side

NOTE: Operation is illustrated with item in fitted position.

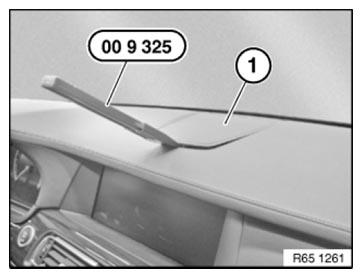

Unclip trim (1) with special tool 00 9 325 from latch mechanisms and remove upwards.

Fig 1: Removing Trim Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

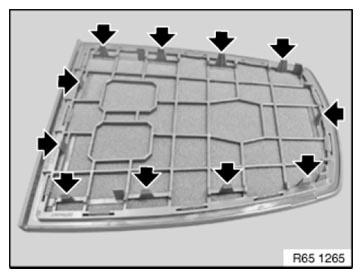

Marked retaining lugs must not be damaged.

Fig 2: Locating Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

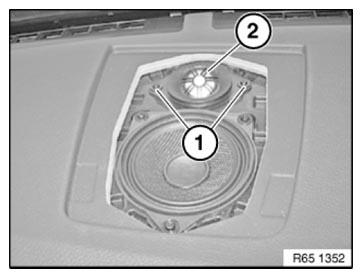

Release screws (1).

Remove tweeter (2) in upward direction.

Fig 3: Identifying Tweeter And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic similar.

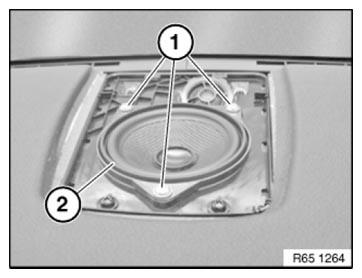

Release screws (1).

Remove speaker (2).

Disconnect plug connection underneath and remove speaker (2).

Fig 4: Identifying Speaker And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

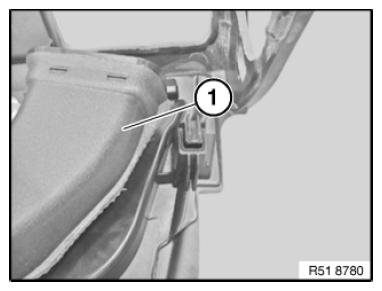

Unclip and change over air ducts (1) on left and right.

Installation:

Make sure air ducts (1) are correctly seated.

Fig 5: Identifying Air Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

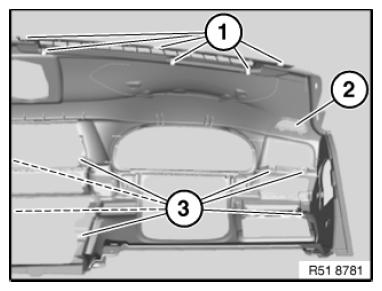

Unclip and change over front defroster outlets (1) on left and right.

Unclip and change over front defroster outlet covers (2) on left and right.

Change over remaining fixings (3).

If necessary, replace RESILIENT SEALING TAPE for VIN number inspection window.

Fig 6: Identifying Front Defroster Outlet Covers And Fixings

Courtesy of BMW OF NORTH AMERICA, INC.
