51 45... Replacing resilient sealing tape for inspection glass in windscreen (additional work)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove strip of resilient sealing tape (2) above stamp area for VIN number (3).

Installation note:

Length of resilient sealing tape (2) = 100 mm

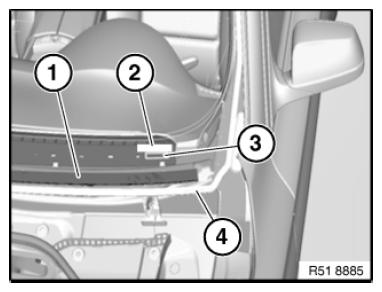

Fig 1: Identifying Resilient Sealing Tape And VIN Number

Courtesy of BMW OF NORTH AMERICA, INC.
