51 71 480 Removing and installing/replacing cross reinforcement (on rear axle)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe safety information for raising the vehicle
Driving without the trailing link is not permitted!

Necessary preliminary tasks

Remove TRAILING LINKS ON LEFT AND RIGHT .
RELEASE REAR SILENCER and lower slightly.

Release nuts of heat shield (3) and lower heat shield (3).

Unscrew nuts (1).

Tightening torque 51 61 14AZ .

Unfasten screws (2).

Tightening torque 51 61 13AZ .

Remove cross reinforcement (4).

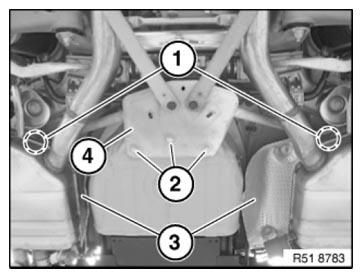

Fig 1: Identifying Cross Reinforcement, Heat Shield, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
