51 71 482 Removing and installing/replacing left or right tension strut (on rear axle)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe safety information for raising the vehicle
Driving without the tension strut is not permitted!

Only on F12, F13:

Release expanding rivet (1) and remove cover (2).

Fig 1: Identifying Expanding Rivet And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2) M12x1.5x53.

Tightening torque 51 61 12AZ.

Installation note:

Replace screw (2), tighten to specified torque and angle of rotation.

Release screw (3) M12x1.5x70.

Tightening torque 51 61 10AZ.

Installation note:

Replace screw (3), tighten to specified torque and angle of rotation.

Unscrew nuts (4).

Tightening torque 51 61 11AZ .

Remove tension strut (1).

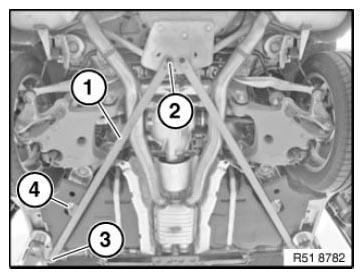

Fig 2: Identifying Tension Strut, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
