51 32 211 Replacing front left or right rubber guide for left or right door window
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove REAR-VIEW MIRROR on front door.
- Remove DOOR TRIM PANEL .
- Remove SOUND INSULATION in front area.

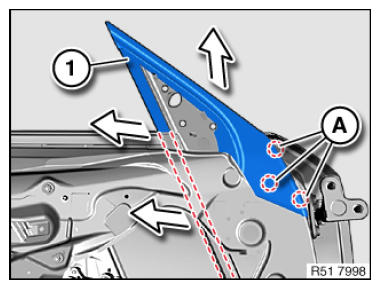

Detach rubber guide (1) in area (A) from door.
Pull rubber guide (1) out of window guide rail and remove towards top.
Installation:
Moisten rubber guide (1) with water before fitting.
Slide rubber guide (1) from above into window guide rail and if necessary retighten at bottom.
Make sure rubber guide (1) is correctly seated on door and door window glass.
Installation:

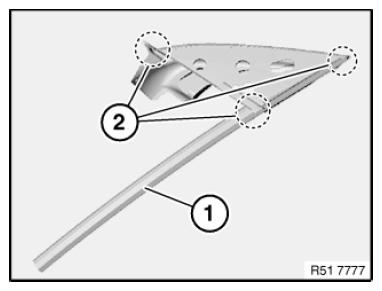

Rubber guide (1) must not be damaged in corners (2).
