51 21 235 Removing and installing/replacing Bowden cable for inside door opener on left or right front door
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work
- Remove FRONT DOOR TRIM PANEL .
NOTE:
Graphic is similar.

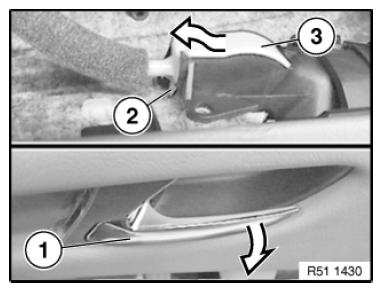

Lever out lock (2)
Pull off Bowden cable housing (3) towards rear/top - the Bowden cable feeds out of its own accord in the process.
Installation note:
To install the Bowden cable, press inner door handle (1) opposite to direction of arrow.
