51 11 773 Replacing front lower left or right deformation element

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove support for bumper panel at front bottom .

Partially detach FRONT ENGINE UNDERCOVER and remove screw (1) from bottom cover.

Fig 1: Identifying Bottom Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 2: Removing Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

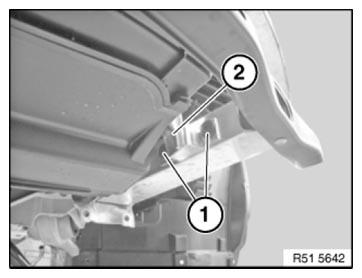

Release screws (1) on vertical connection (2).

Tightening torque 51 11 2AZ .

Fig 3: Identifying Screws On Vertical Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) on front axle support adapter plate (2).

Tightening torque 51 11 6AZ .

Remove deformation element (3).

Fig 4: Identifying Bolt On Front Axle Support Adapter Plate

Courtesy of BMW OF NORTH AMERICA, INC.
