51 11 180 Removing and installing/replacing trim grille for bumper trim (center)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove BASEPLATE FOR NUMBER/LICENSE PLATE .
- Remove TRIM GRILLE FOR BUMPER TRIM left and right.

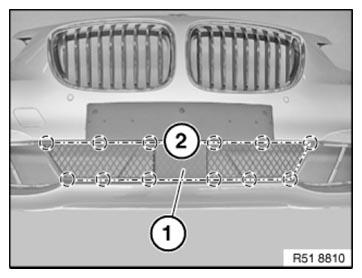

Unclip retaining lugs (2) and remove trim grille (1) by withdrawing forwards.
Installation note:
Retaining lugs (2) must not be damaged.
Necessary preliminary tasks
- Remove BASEPLATE FOR NUMBER/LICENSE PLATE .
- Remove TRIM GRILLE FOR BUMPER TRIM left and right.
Unclip retaining lugs (2) and remove trim grille (1) by withdrawing forwards.
Installation note:
Retaining lugs (2) must not be damaged.
