Sound insulation cowl panel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

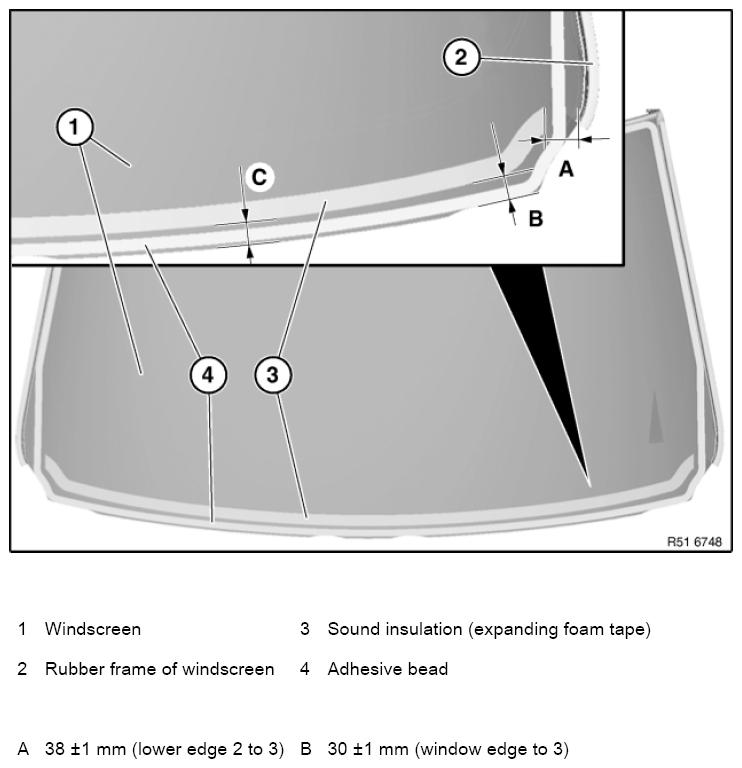

Fig 1: Identifying Windscreen, Sound Insulation, Windscreen Rubber Frame And Adhesive Bead

Courtesy of BMW OF NORTH AMERICA, INC.

Observe NOTES on component-bonding with adhesive tape!

Apply EXPANDING TAPE for VIN number inspection glass on windscreen.

Install the COVER / RUBBER FRAME (1) for the windscreen.

Install GUTTER STRIP/RUBBER FRAME ON LEFT AND RIGHT .

Fig 2: Identifying Cover And Remnants Of Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.
