51 47... Removing and refitting/replacing privacy screen lock (center)

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks

• Remove PRIVACY SCREEN COVER (CENTRE) .

Remove screws from handle casing (1) and lock (2).

Tightening torque 51 47 9AZ .

Maneuver out handle casing and lock.

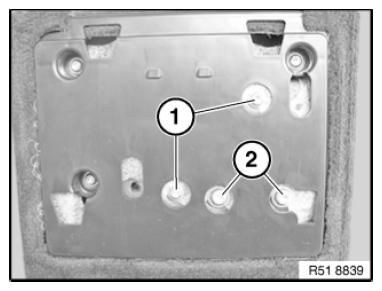

Fig 1: Identifying Handle Casing And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Separate lock (3) from return spring (2) of handle casing (1) and set aside.

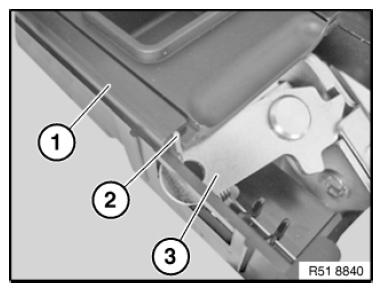

Fig 2: Identifying Lock, Return Spring And Handle Casing

Courtesy of BMW OF NORTH AMERICA, INC.

Additional work on lock:

Change over buffer stop (1).

Remove screws (2) from fixing bracket (3).

Tightening torque 51 47 10AZ .

Change over fixing bracket (3).

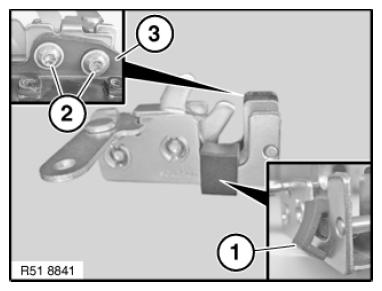

Fig 3: Identifying Buffer Stop, Screws And Fixing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Additional work on handle casing:

Maneuver out return spring (2).

Maneuver out handle recess (1) from handle casing (3).

Installation:

Retaining lugs and holder for return spring (2) must not be damaged.

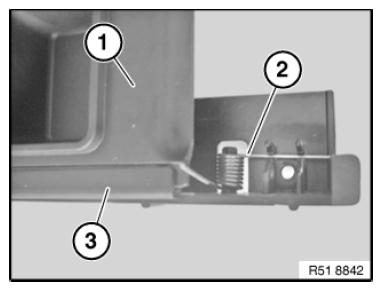

Fig 4: Identifying Handle Recess, Casing And Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.
