51 47... Removing and installing/replacing cargo cover (middle) trim

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks

• If necessary, tilt rear seat backrests forward.
• If necessary, fold cargo cover (middle) forwards.

Unclip lock trim (1) at marked locations and remove.

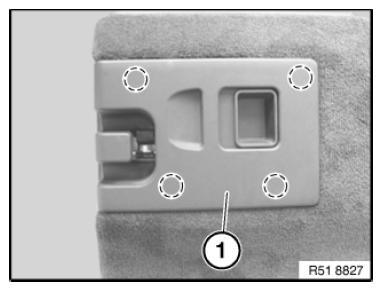

Fig 1: Identifying Lock Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining clips (2) of lock trim (1) must not be bent or broken.

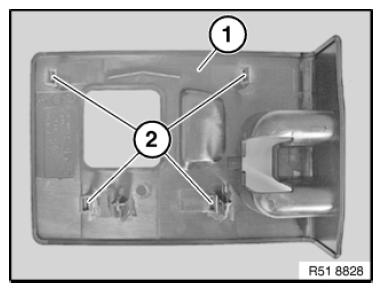

Fig 2: Identifying Retaining Clips And Lock Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 47 8AZ .

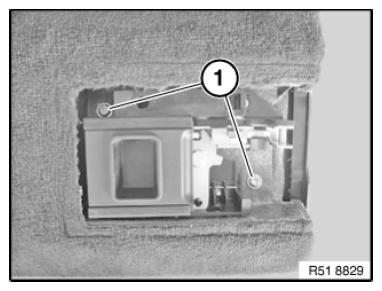

Fig 3: Identifying Cargo Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fold cargo cover (middle) upwards.

Unhook cargo cover trim (1) towards top.

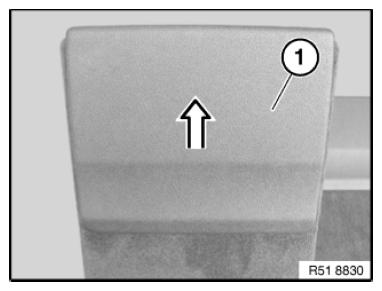

Fig 4: Removing Cargo Cover Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Plastic hooks (2) of cargo cover trim (1) must not be damaged.

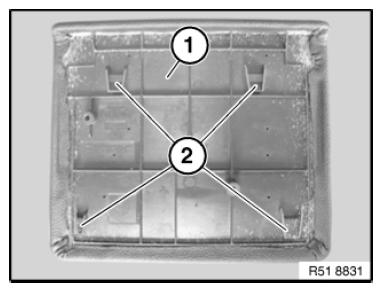

Fig 5: Identifying Plastic Hooks And Cargo Cover Trim

Courtesy of BMW OF NORTH AMERICA, INC.
