51 47... Removing and refitting/replacing lock striker on privacy screen
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks
- Remove OUTER PRIVACY SCREEN COVER .

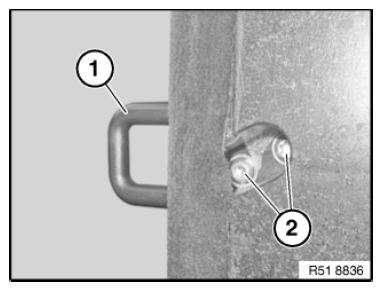

Unfasten screws (2).
Tightening torque 51 47 11AZ .
Maneuver out lock striker (1) sideways.
Installation:
Centre lock striker (1) with the lock.
