51 47 441 Removing and installing/replacing carpet under rear seat
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove rear seat backrest frame . See 52 26 137 REMOVING AND INSTALLING/REPLACING BACKREST FRAME or 52 26 135 REMOVING AND INSTALLING/REPLACING LEFT REAR SEAT BACKREST FRAME on left and right.
- Remove TRIM ON C-PILLAR at bottom right and left.
- Detach END FITTING FROM SEAT BELT , left and right.

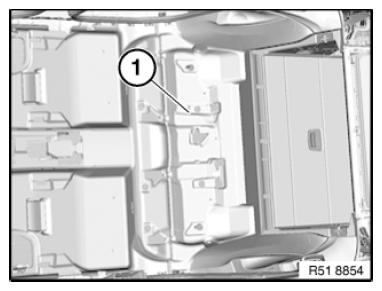

Remove carpet (1) towards top and if necessary feed out cable.
