51 37 000 Removing and installing / replacing complete rear left or right power window regulator

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Danger of injury!
Carry out work on the power window regulator only when the power window motor is de-energized.

Necessary preliminary tasks

Loosen nut (1) with special tool 51 3 300 .

Pull window guide out of window regulator.

Tightening torque 51 35 3AZ .

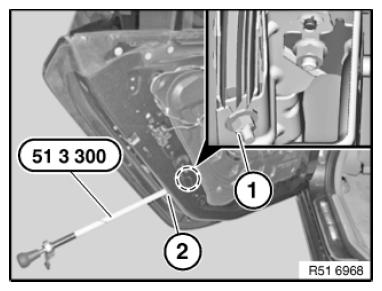

Fig 1: Loosening Collar Nut Using Special Tool (51 3 300)

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen nut (2) with special tool 51 0 400 .

Tightening torque 51 35 6AZ .

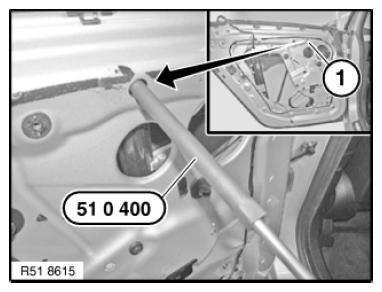

Fig 2: Loosening Nut Using Special Tool (51 0 400)

Courtesy of BMW OF NORTH AMERICA, INC.

Open front door and remove dummy plug.

Loosen nut (1) with special tool 51 3 300 .

Tightening torque 51 35 4AZ .

Open rear door and remove dummy plug.

Loosen nut (1) with special tool 51 3 300 .

Tightening torque 51 35 4AZ .

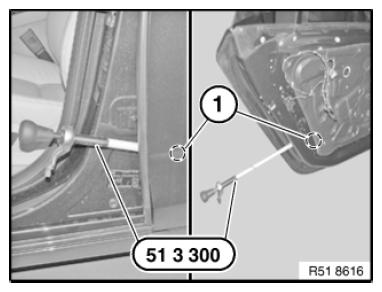

Fig 3: Loosening Nut Using Special Tool (51 3 300)

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 51 35 7AZ .

Release screws (3).

Tightening torque 51 35 8AZ .

Release screw (2).

Tightening torque 51 35 9AZ .

Feed out power window regulator (4).

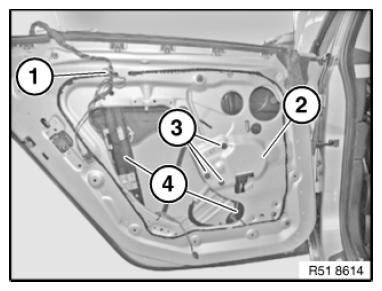

Fig 4: Identifying Power Window Regulator, Screws And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks

Pat attention to INSTRUCTIONS CONCERNING INITIALIZATION OF THE POWER WINDOW REGULATOR .

Replacement

Remove FLAT MOTOR FOR POWER WINDOW REGULATOR .
