67 62 020 Removing and installing/replacing flat motor for rear left or right power window regulator

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove REAR POWER WINDOW REGULATOR

Release screws (1) and detach flat motor (2) from power window regulator.

Tightening torque 67 62 1AZ.

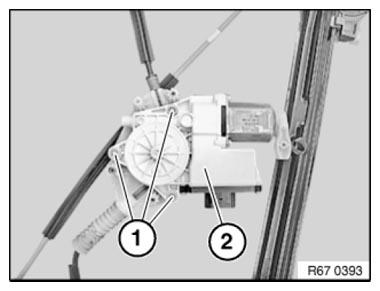

Fig 1: Identifying Power Window Regulator Flat Motor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: For stress-free installation of the flat motor, fit journal (1) in guide (2)!

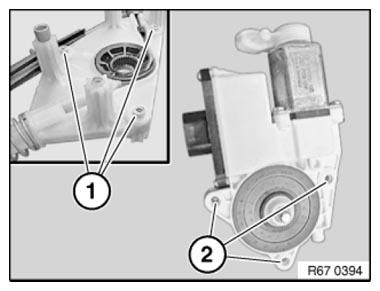

Fig 2: Identifying Journal And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

An initialization must be carried out in order to activate anti-trap mechanism.

Read and comply with NOTES on initialization of power window regulator.
