11 53 000 Removing and installing/replacing coolant thermostat (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!

Only perform this work after engine has cooled down.

Recycling

Catch and dispose of drained coolant in a suitable container.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks

Drain COOLANT .
REMOVE fan cowl with electric fan.
Remove charge air cooler EXPANSION TANK .
Remove COOLANT PUMP .

IMPORTANT: Risk of damage!

Coolant emerges when the coolant hoses are detached from the coolant thermostat.

Cover surrounding components and plug connections with suitable apparatus

NOTE: For purposes of clarity, the graphic shows the auxiliary water pump removed.

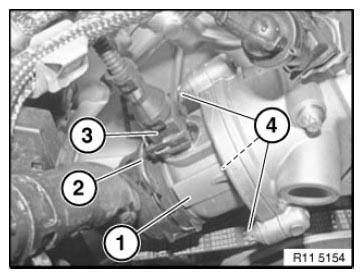

Fig 1: Identifying Coolant Thermostat, Coolant Hose, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Installation note:

plug connection (3) must snap audibly into place!

Unlock snap fastener on coolant hose (2).

Detach coolant hose (2) and lay to one side.

NOTE: One of the screws is not shown and is located at the rear under the coolant thermostat (1).

Release screws (4).

Tightening torque 11 53 1AZ .

Lift out coolant thermostat (1).

NOTE: The coolant thermostat is integrated in the housing cap. It can only be replaced as a complete unit!

Clean sealing surface.

Installation note:

Replace sealing ring (1).

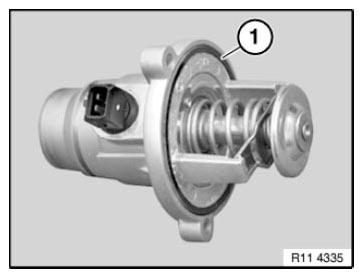

Fig 2: Identifying Coolant Thermostat Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Top up COOLANT .

BLEEDING INSTRUCTIONS must be observed without fail .
