11 65 180 Removing and installing/renewing heat shield at top (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove both INTAKE FILTER HOUSINGS .
Remove both CONTROL SENSORS .

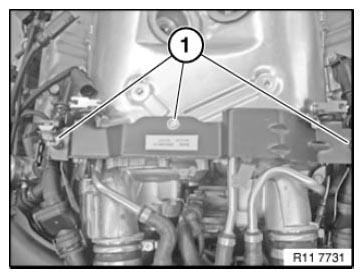

Release screws (1).

Lift out holder.

Fig 1: Identifying Filter Housings Holder Screws

G08475633

Courtesy of BMW OF NORTH AMERICA, INC.

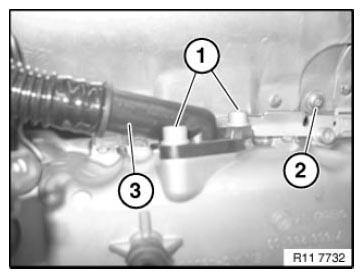

Release screw (2).

Tightening torque 11 65 3AZ .

Fig 2: Identifying Control Sensor And Screws

G08475634

Courtesy of BMW OF NORTH AMERICA, INC.

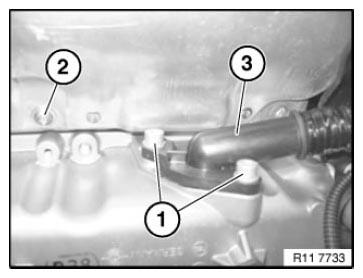

Release screw (2).

Tightening torque 11 65 3AZ .

Fig 3: Identifying Control Sensor And Mounting Screws

G08475635

Courtesy of BMW OF NORTH AMERICA, INC.

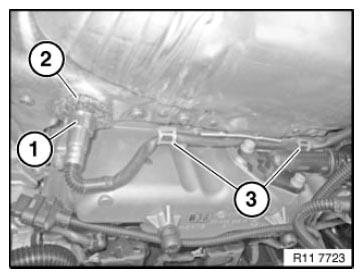

Release retaining clip (1).

Detach wire ring (2) and set down behind oxygen sensor.

Fig 4: Identifying Oxygen Sensor Wire Ring And Retaining Clip

G08475636

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1).

Detach wire ring (2) and set down behind oxygen sensor.

Fig 5: Identifying Oxygen Sensor Wire Ring And Retaining Clips

G08475637

Courtesy of BMW OF NORTH AMERICA, INC.

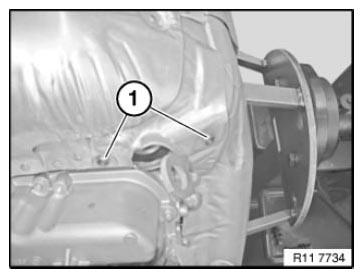

Release screws (1).

Tightening torque 11 65 3AZ .

NOTE: For purposes of clarity, the graphic shows the oxygen sensor removed.

Fig 6: Identifying Heat Shield Screws

G08475638

Courtesy of BMW OF NORTH AMERICA, INC.

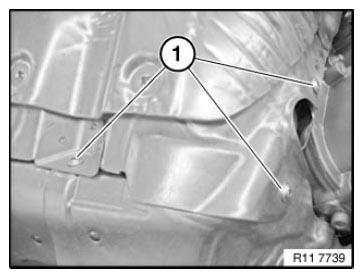

Release screws (1).

Tightening torque 11 65 3AZ .

Lift out heat shield.

Fig 7: Identifying Heat Shield Screws

G08475639

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
