13 71 030 Removing and installing/replacing both intake silencer housings (N63 B40/B44 O 0/1)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Switch off ignition.
Remove ACOUSTIC COVER .

NOTE: Description for left air filter box. Procedure on right side identical.

Release clamps (1).

Tightening torque 13 62 9AZ.

Unfasten connector (2) on hot film air mass meter and disconnect.

Release clamp (3).

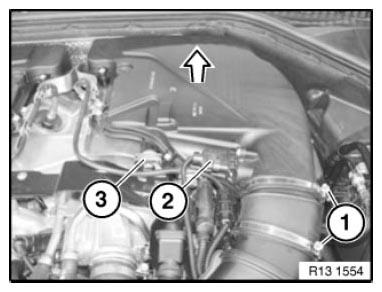

Fig 1: Pulling Intake Air Filter Housing Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the oxygen sensor cable from the intake filter housing.

Detach intake air filter housing from intake port, pull off upwards and remove.
