11 61 068 Removing and installing/replacing right intake plenum (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove right INJECTION PIPE .
Remove THROTTLE VALVE
Release screws on intake plenum from above without fail before lowering front axle.
Secure ENGINE in installation position.
Lower FRONT AXLE , releasing screws on engine mount first.
Release A/C compressor and place to one side . See 64 52 524 REMOVING AND INSTALLING/REPLACING HEATING AND AIR CONDITIONING SYSTEM COMPRESSOR (N63, WITH DYNAMIC DRIVE) or 64 52 524 REMOVING AND INSTALLING/REPLACING HEATING AND AIR CONDITIONING SYSTEM COMPRESSOR (N63, WITH DYNAMIC DRIVE) .

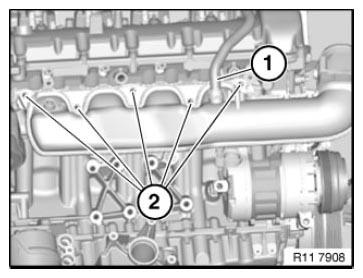

Detach engine ventilation hose (1).

Disconnect connector.

Unscrew nuts (2).

Tightening torque: 11 61 1 AZ .

Fig 1: Identifying Engine Ventilation Hose And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

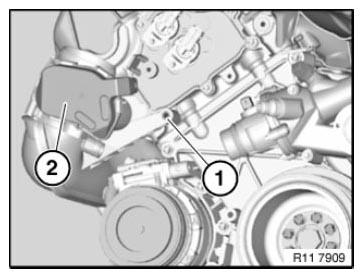

Remove THROTTLE VALVE (2).

Release screw (1).

Tightening torque: 11 61 2 AZ .

Feed out intake plenum towards rear.

Installation note:

Replace all profile seals.

Fig 2: Identifying Throttle Valve And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine and vehicle.

Check air intake system for leaks.
