11 61 065 Removing and installing/replacing left intake plenum (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove left INJECTION PIPE .
Remove THROTTLE VALVE
Release screws on intake plenum from above without fail before lowering front axle.
Secure ENGINE in installation position.
Lower front axle . See 31 11 506 LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) or 31 11 506 LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) , releasing screws on engine mount first
Release power steering pump . See 32 41 060 REMOVING AND INSTALLING VANE PUMP FOR HYDRAULIC STEERING , 32 41 060 REMOVING AND INSTALLING VANE PUMP FOR HYDRAULIC STEERING , 32 41 037 REMOVING AND INSTALLING/REPLACING POWER STEERING PUMP FOR HYDRAULIC STEERING GEAR WITH DYNAMIC DRIVE (N63) or 32 41 037 REMOVING AND INSTALLING/REPLACING POWER STEERING PUMP FOR HYDRAULIC STEERING GEAR WITH DYNAMIC DRIVE (N63) , if installed, and set aside.
UNIVERSAL JOINT with corrugated tubing.

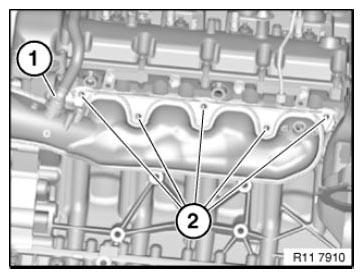

Detach engine ventilation hose (1).

Disconnect connector.

Unscrew nuts (2).

Tightening torque: 11 61 1 AZ .

Fig 1: Identifying Engine Ventilation Hose And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

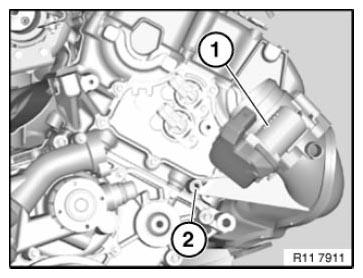

Release THROTTLE VALVE (1).

Release holder screw (2) on intake plenum.

Tightening torque: 11 61 2AZ .

Feed out intake plenum towards rear.

Installation note:

Replace all profile seals.

Fig 2: Identifying Throttle Valve And Holder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine and vehicle and

Check air intake system for leaks.
