13 54 015 Removing and installing/sealing left throttle valve assembly (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Turn off ignition.
Remove left INTERCOOLER .

Unlock plug (1) and remove.

Unfasten screws (2).

Tightening torque 13 54 1AZ .

Remove throttle valve assembly (3).

Installation:

Check plug connection (1) for coolant remnants. If necessary, clean plug connection (1) with compressed air.

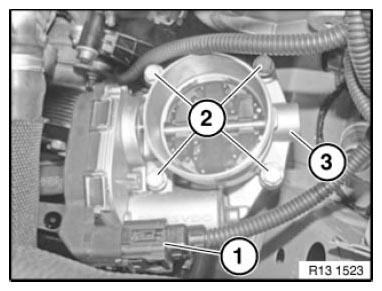

Fig 1: Identifying Throttle Valve Assembly With Plug And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring (1) of throttle assembly (2).

Fig 2: Identifying Sealing Ring And Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check stored fault message.

clear fault memory.
