64 22 191 Removing and installing/replacing rear cabin fresh-air grille (High A/C system)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR A/C SYSTEM CONTROL PANEL

NOTE: Example graphic on the F01.

Release screws (1).

Carefully press rear cabin fresh-air grille (2) forwards out of centre console trim (3).

Fig 1: Identifying Rear Cabin Fresh-Air Grille And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) must be correctly seated in associated guides (2) and must not be damaged.

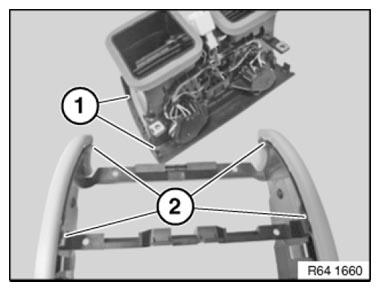

Fig 2: Identifying Guides And Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
