64 22 138 Removing and installing/replacing right fresh-air grille

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON RIGHT .

Release screws (1).

Pull out right fresh-air grille (2) towards front and unlock and disconnect plug connection behind.

Remove right fresh-air grille (2).

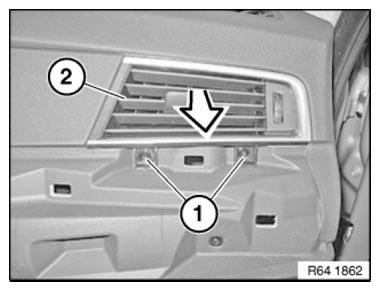

Fig 1: Pulling Out Right Fresh-Air Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Picture for example purposes only!

Installation:

Catches (1) of fresh-air grille (2) must not be damaged.

Make sure fresh-air grille (2) is correctly seated on fresh air duct behind.

Fig 2: Identifying Fresh-Air Grille And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
