64 11... Replacing rear passenger compartment A/C control panel fan motor
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work

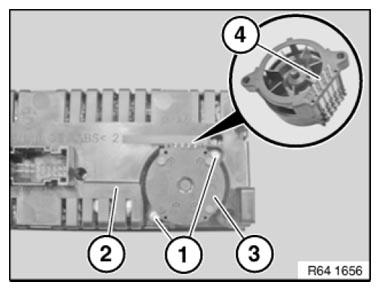

Release screws (1).
Remove fan motor (3) from A/C control panel (2).
Installation note:
Make sure pins (4) are correctly seated on fan motor (3).
